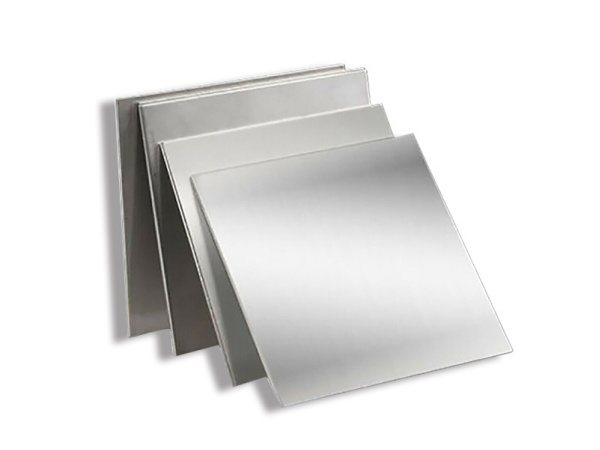

202 Stainless Steel Plate

202 stainless steel is one of the 200 series of stainless steel, which is a stainless steel with low nickel content and high manganese content, because it is a stainless steel developed to save nickel, so its nickel content is relatively low.

Product Introduction

Product Parameters

Product Name202 Stainless Steel Plate
TypePlate
Thickness0.3mm-200mm
Length2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Scope of Application Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging, kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc.
CertificateISO, SGS, BV, etc.
Production TechnologyHot Rolling, Cold Rolling
Edge ProcessingEdging, Trimming

Chemical Composition

C Si Mn Cr Ni S P
≤ 0.08 ≤ 1.0 ≤ 2.0 18.0~20.0 8.0~10.5 ≤ 0.03 ≤ 0.035

Mechanical Properties

Tensile Strength Kb (MPa) Yield Strength σ0.2 (MPa) Elongation D5 (%) Hardness
≥ 520 ≥ 205 ≥ 40 ≤ 187HB / ≤ 90HRB / ≤ 200HV

Physical Performance

Density (g/cm³) Modulus of Elasticity (GPa) Coefficient of Thermal Expansion (10⁻⁶/°C) Thermal Conductivity (W/m·K) Resistivity (μΩ·cm)
8.03 193 16.9 16.2 72
