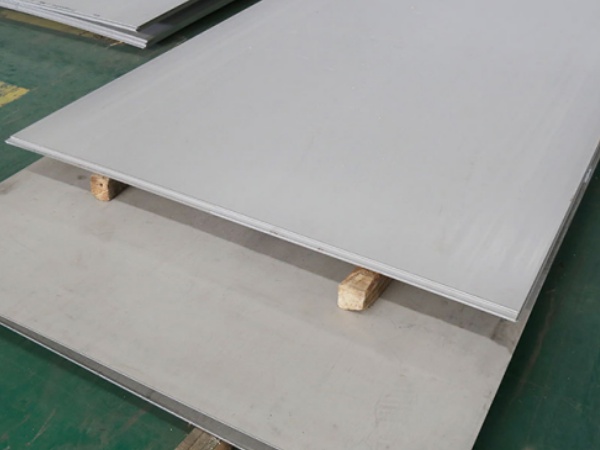

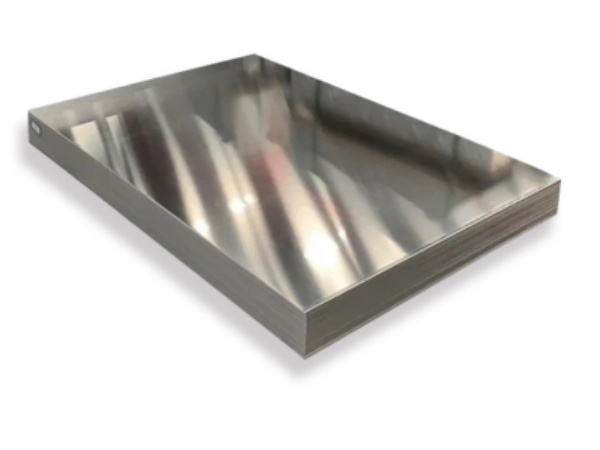

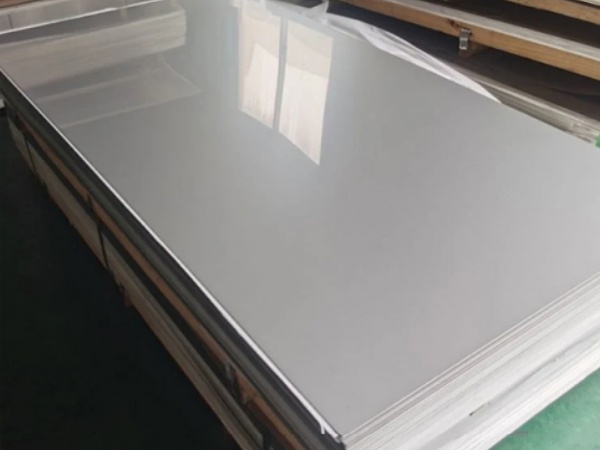

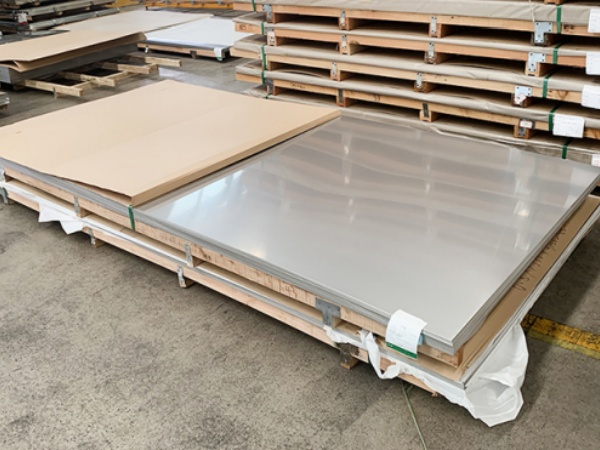

305 Stainless Steel Plate

305 stainless steel is a common austenitic stainless steel containing elements such as chromium, nickel, and manganese. Chromium is the main anti-corrosion element and can combine with oxygen to form a dense oxide film to protect materials from corrosion. Nickel can improve the material's heat resistance and toughness while reducing its magnetism.

Product Introduction

Product Parameters

Product Name305 Stainless Steel Plate
TypePlate
Thickness0.3mm-200mm
Length2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Scope of Application Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging, kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc.
CertificateISO, SGS, BV, etc.
Production TechnologyHot Rolling, Cold Rolling
Edge ProcessingEdging, Trimming

Chemical Composition

C Si Mn Cr Ni S P
≤ 0.08 ≤ 1.0 ≤ 2.0 18.0~20.0 8.0~10.5 ≤ 0.03 ≤ 0.035

Mechanical Properties

Tensile Strength Kb (MPa) Yield Strength σ0.2 (MPa) Elongation D5 (%) Hardness
≥ 520 ≥ 205 ≥ 40 ≤ 187HB / ≤ 90HRB / ≤ 200HV

Physical Performance

Density (g/cm³) Modulus of Elasticity (GPa) Coefficient of Thermal Expansion (10⁻⁶/°C) Thermal Conductivity (W/m·K) Resistivity (μΩ·cm)
8.03 193 16.9 16.2 72
