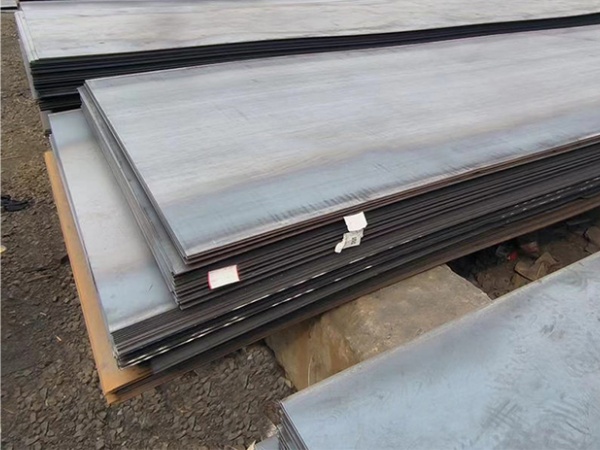

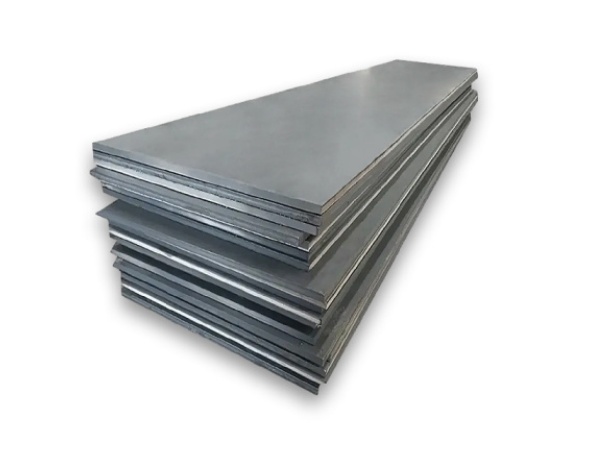

ASTM A283 / SA-283 Carbon Steel Plate
ASTM A283 is a carbon steel plate used for general structural purposes. The steel has low and medium tensile strength. The ASTM A283 steel specification covers four structural quality grades of mild steel, grades A, B, C, and D, for general application.
Product Introduction
Product Parameters
| Product Name | ASTM A283 / SA-283 Carbon Steel Plate |
|---|---|
| Production Process | Hot Rolling, Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m, or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
| C | Cu | Fe | Mn | P | Si | S |
|---|---|---|---|---|---|---|
| 0.25~0.290 | 0.20 | 98.0 | 1.03 | 0.040 | 0.280 | 0.050 |
Mechanical Properties
| Property | Metric | Imperial |
|---|---|---|
| Tensile Strength | 400~550 MPa | 58000~79800 psi |
| Yield Strength | 250 MPa | 36300 psi |
| Elongation (200mm) | 20.0% | 20.0% |
| Elongation (50mm) | 23.0% | 23.0% |
| Elastic Modulus | 200 GPa | 29000 ksi |
| Shear Modulus | 79.3 GPa | 11500 ksi |
Physical Performance
| Property | Metric | Imperial |
|---|---|---|
| Density | 7.85 g/cm³ | 0.284 lb/in³ |
Equivalent Material
| GB | EN | ASTM | DIN | JIS | AFNOR | BS | HG |
|---|---|---|---|---|---|---|---|
| Q235B | S235JR | A283C | St37-2 | SM400A | E24-2 | 40A/40B | 230G |
