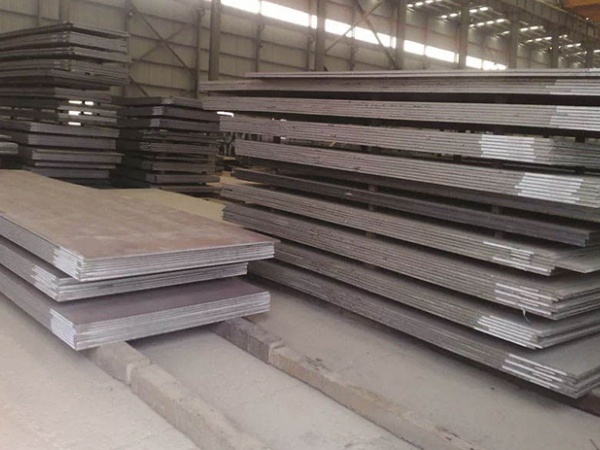

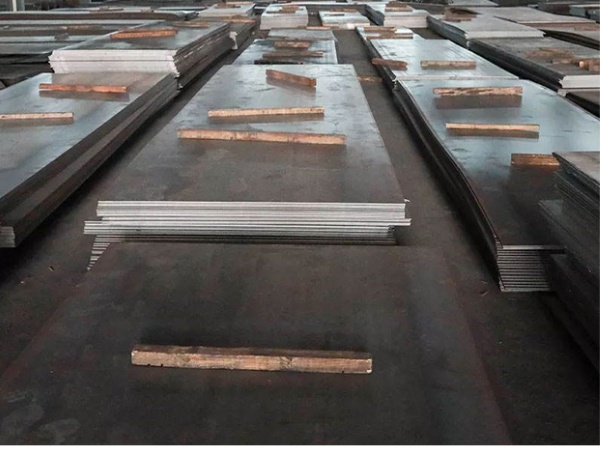

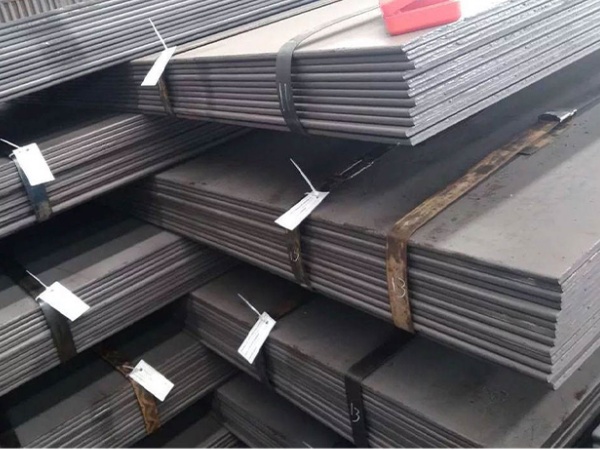

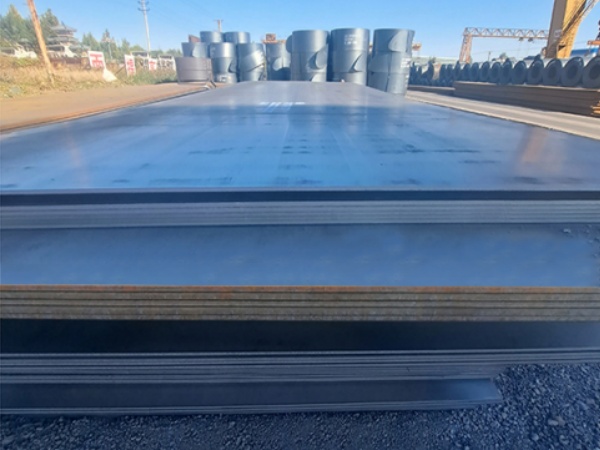

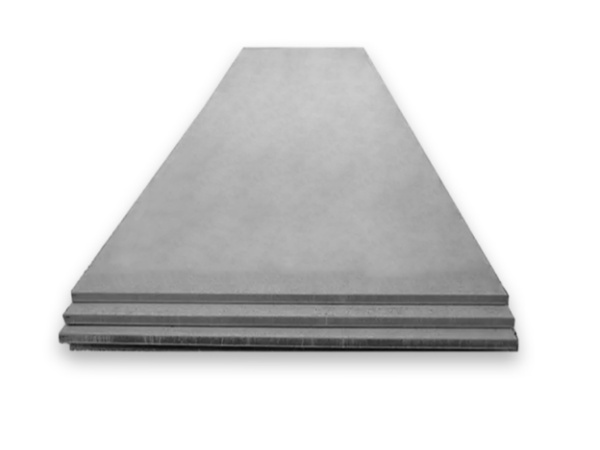

ASTM A514 / SA-514M Carbon Steel Plate
ASTM A514 steel is available in several grades: A, B, C, E, F, H, J, K, M, P, Q, S, and T, all of which have the same mechanical properties. ASTM A514 steel plates are conventionally quenched and tempered steel. ASTM A514 steel plate is known for its high yield strength, weldability and toughness. ASTM A514 steel is a special high-strength steel, mainly used as building structural steel.
Product Introduction
Product Parameters
| Product Name | ASTM A514 / SA-514M Carbon Steel Plate |
|---|---|
| Production Process | Hot Rolling, Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m, or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
| C | Cu | Fe | Mn | P | Si | S |
|---|---|---|---|---|---|---|
| 0.25~0.290 | 0.20 | 98.0 | 1.03 | 0.040 | 0.280 | 0.050 |
Mechanical Properties
| Property | Metric | Imperial |
|---|---|---|
| Tensile Strength | 400~550 MPa | 58000~79800 psi |
| Yield Strength | 250 MPa | 36300 psi |
| Elongation (200mm) | 20.0% | 20.0% |
| Elongation (50mm) | 23.0% | 23.0% |
| Elastic Modulus | 200 GPa | 29000 ksi |
| Shear Modulus | 79.3 GPa | 11500 ksi |
Physical Performance
| Property | Metric | Imperial |
|---|---|---|
| Density | 7.85 g/cm³ | 0.284 lb/in³ |
Equivalent Material
| GB | EN | ASTM | DIN | JIS | AFNOR | BS | HG |
|---|---|---|---|---|---|---|---|
| Q235B | S235JR | A283C | St37-2 | SM400A | E24-2 | 40A/40B | 230G |
